How To: Replace Ferrari 512 TR Bulbs with LEDs 5


A burned out bulb on your car isn’t just an annoyance, it’s a safety issue… and one that could get you pulled over. So many of my favorite COPS episodes on TV start with a plain old “your tail light is burned out” traffic stop. Bad boys, bad boys… what’cha gonna do?

The main purpose of this article is to provide a list of the LED replacement bulbs for the brake lights, parking lights, stop lights, turn signals, and reverse lights for a Ferrari 512 TR. But even for those of you who don’t drive a 1990s-era Ferrari, and own a car that has standard incandescent bulbs installed, I recommend that you consider swapping your old auto bulbs for LEDs.

Upgrading to LED bulbs makes your car easier to see (and therefore safer to drive) and requires fewer bulb changes over the life of your ownership. In fact, an LED bulb will almost certainly never need to be replaced in your car, even if you own the car for another 40+ years.

So for Ferrari 512 TR owners, this article will tell you the exact bulbs you’ll need to swap yours out. And for owners of other cars, there’s still useful info for you below (make sure you check out the red vs. white bulb photo), and you can click on the included links below to find the right LED bulb for your car.

LED Replacement Bulb Colors

The OEM turn signal bulbs in many cars (including the Ferrari 512 TR) are amber colored, since the law requires them to light up amber if they’re inside a clear lens fixture. So your replacement turn signals should also be amber for the same reason.

But because the tail light and brake light lenses are red, Ferrari (and most other car makers) often use white bulbs in those locations. However, when replacing your tail lights and brake lights with LEDs, I recommend using red bulbs, which will emit light that won’t get filtered out by the red lenses. Here’s a side-by-side comparison of red vs. white LED bulbs behind a red lens:

Even if the original bulb is white, use a red LED bulb for best results when replacing tail and brake lights.

Even if the original bulb is white, use a red LED bulb for best results when replacing tail and brake lights.

As you can see from the photo, a white bulb will work, but a red one will give you much better results. And for turn signals, an amber bulb will work best in either a clear or a yellow-colored fixture.

My Favorite Automobile LED Bulb Brand

As LED bulbs become more popular, more companies are manufacturing them. I’ve used a number of different LED brands over the years for many of my cars, but my currently favorite car LED manufacturer JDM ASTAR (and my favorite place to buy them is Amazon).

If you shop around, you’ll find a wide range in prices for automobile LED replacement bulbs. The first-generation LEDs (which look kind of like Christmas lights) should be avoided. The flat LED emitters are the newer technology, and are the brightest and most reliable. JDM ASTAR makes a wide range bulbs; the ones with the most emitters and extra features (such as lenses and sealed enclosures) are the brightest, but they cost a bit more than their other versions that come with fewer emitters and extra features. The examples I link to (which I purchased for my car), are their “top end” LEDs, but feel free to shop around for the bulb that’s right for you. JDM ASTAR bulbs aren’t the cheapest, but I believe they’re the best value.

Sure, you can roll the dice and pick up cheaper ones on eBay, or buy the really crappy ones from a local auto parts store — but I’ve had bad luck doing both of those in the past. JDM ASTAR bulbs are very high quality (they use aircraft-grade aluminum housings), super bright, have the best light beam patterns (to completely fill the fixture with light), and I’ve never had to return one because it didn’t work. Because the Ferrari manual was wrong, I have had to return a couple when I ordered the wrong ones… but Amazon’s return process made that super easy.

The Ferrari Manual is Wrong?

Yep, it’s wrong. If you’re a Ferrari 512 TR owner searching for the proper bulbs to replace with LEDs, don’t rely on the owner’s manual. It’s incorrect, as well as misleading. For example, here’s page L10 from the 1992 manual:

Rear Lights from the 1992 512 TR Owner's Manual

Rear Lights from the 1992 512 TR Owner’s Manual

The bulbs I cover in this post are the bulbs that go in locations: C, D, E, F, and G. Note that C is shown as the “Parking and stop light.” On my US Version 1992 512 TR, location C actually holds two different bulbs: one is the “stop light” (that comes on when the brakes are applied) and the other is the “parking light” which comes on comes on whenever the lights are on (in the US, we’d call that a “tail light”). On the next page of the manual (not shown), it says that both bulbs here should be replaced with the same bulb type… but that’s incorrect. I don’t know if maybe the bulb layout is different on Euro vs US versions of the 512 TR, but at least in my 1992 US version Ferrari 512 TR, the following bulbs are all installed and working great.

512 TR Rear Bulb Layout

Because the wording and images in the manual are a bit confusing, I made my own image with labels to make things easier, and will use these same terms throughout this article. The right side is shown, but naturally this layout would be “flipped” on the left side.

Ferrari 512 TR rear lights with labels

Ferrari 512 TR rear lights with labels

I’ve also included a few photos of my car as I installed and tested the bulbs. The camera on my iPhone doesn’t do a good job of showing just how much difference there is between the OEM vs. the LED bulbs (and the fact that I took these photos during the day probably doesn’t help), but I assure you the difference is massive — not only in the light output, but also the color and the ability for the bulb to completely fill the fixture. In all the included photos, the LEDs are on the right and the incandescent OEM bulbs are on the left.

Light Bulb Base Types

Nearly all of the exterior bulbs on the Ferrari 512 TR use 15mm-sized “bayonet” style bases. Bayonet bases have small “lugs” on the sides that secure the bulb in place, as when attaching a bayonet to a rifle. The three types of 15mm bayonet bases are BA15S (single contact), BA15D (double contact), and BAY15D (double contact with indexed lugs). It’s important to understand their differences so you buy the right ones. The top row of the following image shows what the bases look like from the bottom, and the bottom row shows what they look like from the side:

BAY15D, BA15D, and BA15S bulb bases.

BAY15D, BA15D, and BA15S bulb bases.



Notice that one of the lugs on the side of the BAY15D is higher than the other. This ensures that the bulb can only be installed with the proper polarity. The BAY15D and BA15S bases are used on the 512 TR’s bulbs, but it uses no BA15D bulbs.

The other base type you’ll encounter on this car is a wedge base, which is flat and just presses into place. Here’s an example of a T10 bulb with a wedge base:

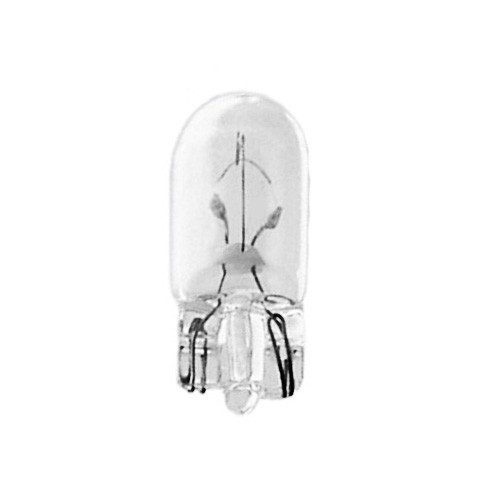

T10 base bulb

T10 wedge base bulb

LED Replacement Tail Light / Rear Parking Light Bulbs

As I mentioned above, the manual calls this Location C, but there are actually two bulbs in that location. The outer-most bulb is what I we call a “tail light” in the US (the manual calls it a “parking light”). Here they are on my car (LED version is on the right side):

Ferrari 512 TR tail lights

Ferrari 512 TR tail lights

OEM Bulb: The original stock bulb for this location is a Leuci R5W, white, BA15S base.

LED Replacement: The manual calls for a double contact bayonet base (and dual filament) 1034-3/32 bulb — which is incorrect. This location actually needs a single contact bulb, so replace it with a red 1156 BA15S LED.

Total Number of Bulbs: 2 (one on each side)

LED Replacement Rear Outer Brake Light / Stop Light Bulbs

This is the second bulb in Location C, shown as the “Outer Brake Light” in my layout photo. When the brakes are applied, these bulbs turn on, as well as the “Inner Brake Light” bulbs, as shown in this photo. The Outer Brake Lights are the bulbs just outside the reflectors.

Inner and Outer Brake Lights (Stop Lights) when the brakes are applied.

Inner and Outer Brake Lights (Stop Lights) when the brakes are applied.

OEM Bulb: The original stock bulb for this location is an OSRAM P21/5W, white, BAY15D base.

LED Replacement: The manual calls for “1034-3/32 cp” bulb, so the correct LED replacement is a red 1157 BAY15D LED.

Total Number of Bulbs: 2 (one on each side)

LED Replacement Rear Inner Brake Light / Stop Light Bulbs

Shown in the manual as “stop lights” in Location F, these inner brake light bulbs sit directly below the reverse lights and illuminate the lens on the bottom row that sit closest to the engine bay.

OEM Bulb: The original stock bulb for this location is a Leuci R5W, white, BA15S base.

LED Replacement: The manual calls for “1073/32 cp” bulb, so the correct LED replacement is a red 1156 BA15S LED.

Total Number of Bulbs: 2 (one on each side)



LED Replacement Reverse Light Bulbs

Shown in the manual as “reverse light” in Location E, these innermost top-row bulbs light up only when the car is in reverse. Replacing the stock bulbs with LEDs makes a huge difference when trying to back up at night. You can see a different in the LED bulb on the right side in this photo, but when it’s dark, the difference is even bigger. The light output is whiter, brighter, and is almost like having rear headlights!

Reverse lights (top row) illuminated.

Reverse lights (top row) illuminated.

OEM Bulb: The original stock bulb for this location is a Leuci R5W, white, BA15S base.

LED Replacement: The manual calls for “1073/32 cp” bulb, so the correct LED replacement is a white 1156 BA15S LED.

Total Number of Bulbs: 2 (one on each side)

LED Replacement Rear Turn Signal Bulbs

Strangely, the Ferrari 512 TR manual doesn’t even mention which bulbs are needed for the rear turn signal fixtures. Each side requires two bulbs, and because they simply blink on and off, you might assume that you only need a single filament / single contact bulb… but you’d be wrong. Even though only one of the contacts in their wiring harness is used, the rear turn signals need to be dual contact bulbs.

Also, because LED bulbs require much less amperage to operate than standard bulbs, you’ll need to use a new flasher relay to make the bulbs flash at the proper speed (more on that below).

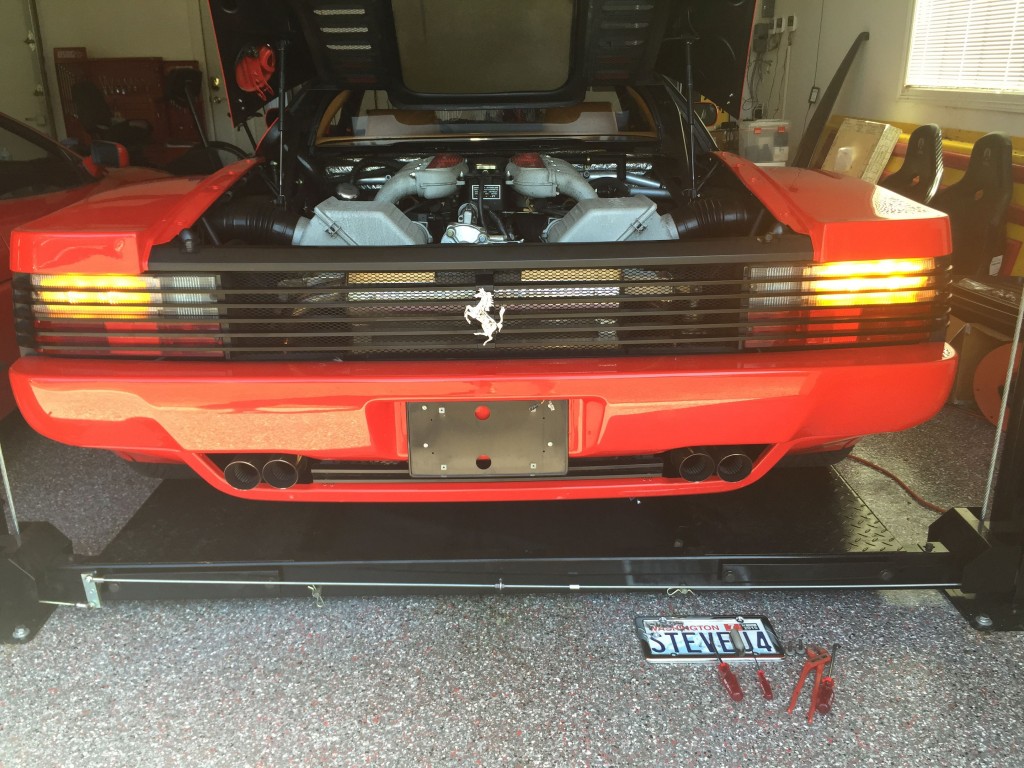

This photo shows the the OEM vs LED brightness, but again — the camera isn’t showing how big the difference is with the human eye:

OEM vs. LED Turn Signals

OEM vs. LED Turn Signals

Another huge difference is the speed and crispness with which the LEDs blink, vs. the slower “glow” of the incandescents. There’s no better way to describe the difference than to show you a quick video clip:

OEM Bulb: The original stock bulb for this location is an OSRAM P21/5W, amber, BAY15D base.

LED Replacement: The manual doesn’t mention this bulb, but the correct LED replacement is an amber 1157 BAY15D LED.

Total Number of Bulbs: 4 (two on each side)

LED Replacement Front Turn Signal / Parking Light Bulbs

At the front end of the 512 TR, the only bulbs worth replacing with LEDs are the turn signals. They take the same bulbss as the rear turn signal fixtures, but there’s only one per side up front. These are mentioned in the owner’s manual as “front direction indicator and parking light” as well as “front direction indicator and pilot light.” As with the rear turn signal bulbs, if you replace these with LEDs you’ll need to use a new flasher relay to make the bulbs flash at the proper speed.

OEM Bulb: The original stock bulb for this location is an OSRAM P21/5W, amber, BAY15D base.

LED Replacement: The manual calls for “1034-3/32 cp” bulb, so the correct LED replacement is an amber 1157 BAY15D LED.

Total Number of Bulbs: 2 (one on each side)

LED Replacement Side Marker Bulbs

Absent on the Euro version, the US version of the 512 TR has four side marker fixtures, one on each corner of the car. The two at the front are amber and the two at the rear are red. The stock bulbs are all white, but you’ll get better results with bulbs that match the lens colors. Also, the bulb has to be inserted with the correct polarity, so if it doesn’t work, try flipping it over and should light up.

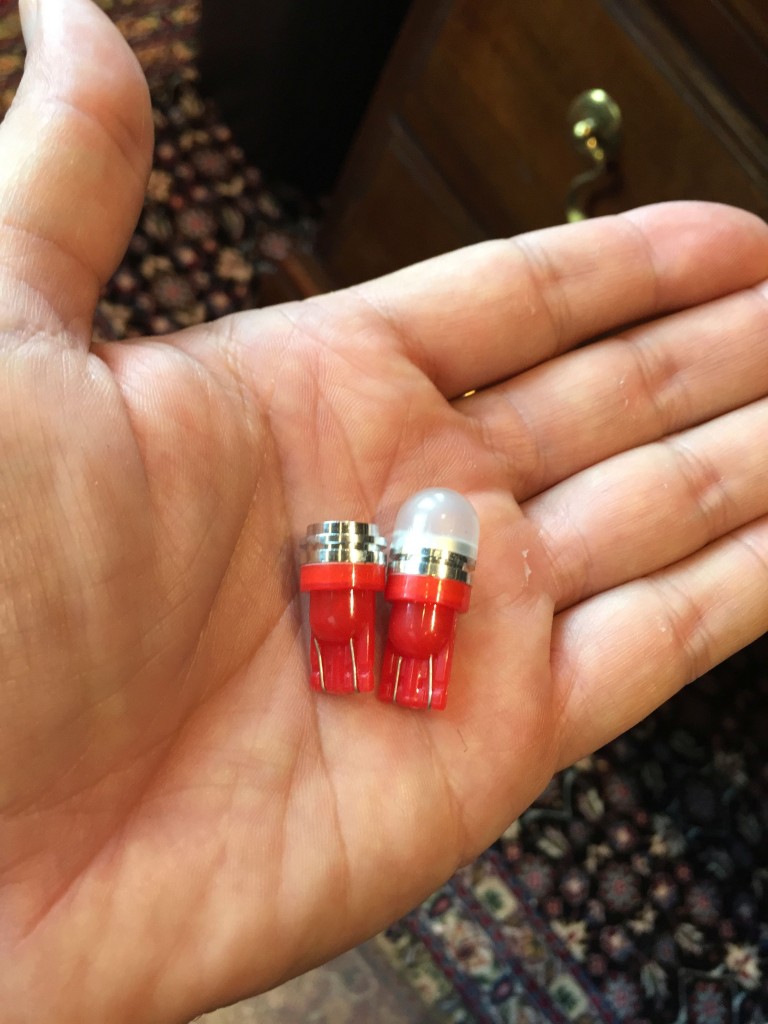

Be careful that the bulbs you order are not too tall for the application. I initially ordered a set that were .94″ (24 mm) tall. They were barely too tall, and the base that holds the bulb wouldn’t “click” back into place when I rotated it. You should be fine with bulbs that are .87″ (22 mm) or shorter. The bulbs at the links I include below will work, but only after using pliers (I used my Leatherman) to gently remove the frosted plastic housing that covers the LED emitters:

T10 red LEDs for the side markers need the tops removed to fit.

T10 red LEDs for the side markers need the tops removed to fit.

OEM Bulb: The original stock bulb for this location is a 194 4W, white, T10 wedge contact base.

LED Replacement: The manual only calls for a “tubular 4W” bulb, but the correct LED replacement for the front markers is an amber 194 T10 LED, and red 194 T10 LED for the rears. You will need to gently remove the top plastic portion for them to fit properly.

Total Number of Bulbs: 4 (2 amber up front, 2 red in the rear)

LED Turn Signal Flasher Relay

One of the benefits of LEDs is that they use far less energy than traditional bulbs for the same (or even brighter) light output. However, that benefit can cause trouble with the flasher relay (which is what causes your turn signals to blink). Because the LED bulb uses such low amperage, the relay is fooled into thinking that the traditional bulb has burned out, so it then speeds up the flash rate so you’ll notice the turn signal dash indicator is blinking wildly and know the bulb needs replacing.

There are two solutions to this problem. The more complex approach is to splice a resistor into each turn signal bulb’s wire, so that the flasher “sees” more resistance when the bulb is lit and blink normally. On the 512 TR, you’d need to do that six times (two turn signal bulbs up front, four in the back). A much easier solution is simply to replace the turn signal flasher relay with an updated one that will still work properly with the LED’s lower resistance. On most cars and motorbikes, this CF13 JL-02 flasher should do the trick. But on the the 512 TR, you need to replace the stock ITALAMEC 12W 66W DOT 277 relay with a CF14 JL-02 flasher, which has the positive and negative terminals in the proper positions.

The turn signal flasher relay is located inside the cabin, on the passenger side, underneath the dash. If you lie down on the floor and shine a flashlight up under the dash, you’ll see two relays secured with a 10mm nut. You’re looking for the one that says ITALAMEC on it. It looks like this:

The OEM turn signal flasher relay will not work with LED bulbs.

The OEM turn signal flasher relay will not work with LED bulbs.

If you accidentally unplug a relay that has more than three terminals, don’t worry. Just plug it back in and pick the other one. The correct relay only has three terminals, so its plug will look like this:

The turn signal flasher relay plug is located under the passenger side dash.

The turn signal flasher relay plug is located under the passenger side dash.

Plug the new relay in place (it may not have a screw hole to re-secure it, so zip-ties will come in handy), and test out your flashers. The easiest way to do so is with the hazard button, which uses this same relay.

LED Auxiliary / Third Brake Light

On the US version of the 512 TR, an “Auxiliary Brake Light” is mounted above the rear window (Location G in the manual). Most US drivers would refer to this as the “third brake light.” This was slightly harder for me to find, but with the use of my calipers, I was able to track down the right bulb.

The entire auxiliary brake housing can accessed by removing two large flat-head screws underneath the housing (check the underside of the rear bonnet), then carefully gripping the front lense of the housing with some channel-lock pliers and pulling with gentle even pressure. A quick-disconnect on the rear of the housing will finish the job:

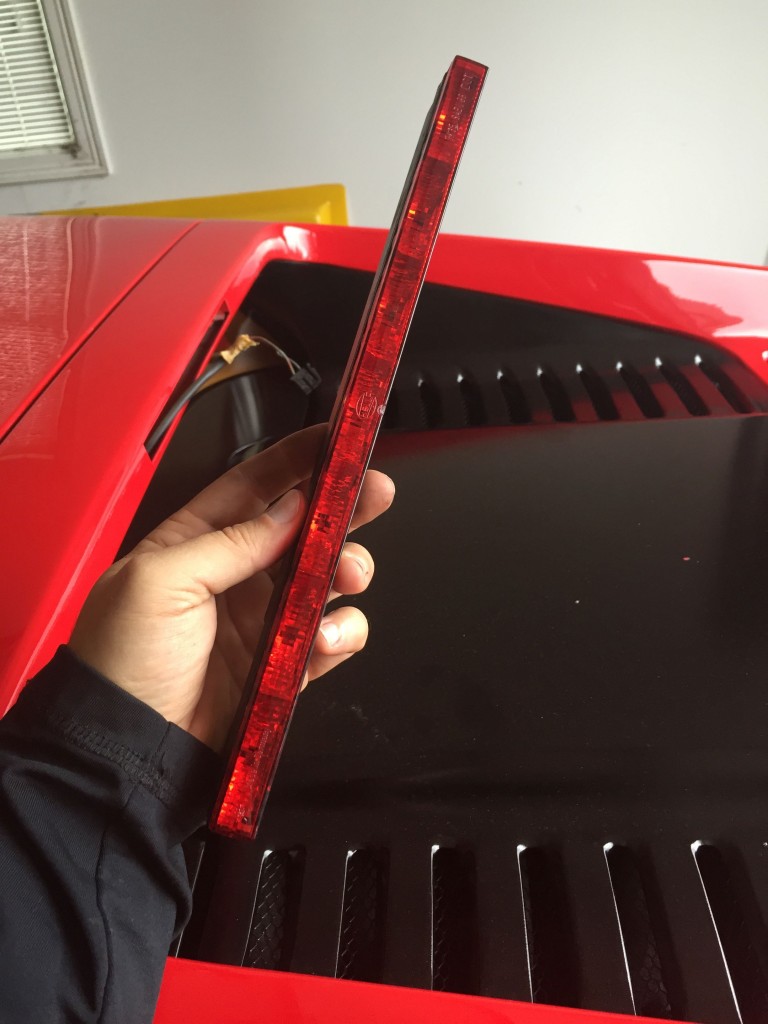

Ferrari 512 TR Auxiliary Brake (Third Brake) Light

Ferrari 512 TR Auxiliary Brake (Third Brake) Light

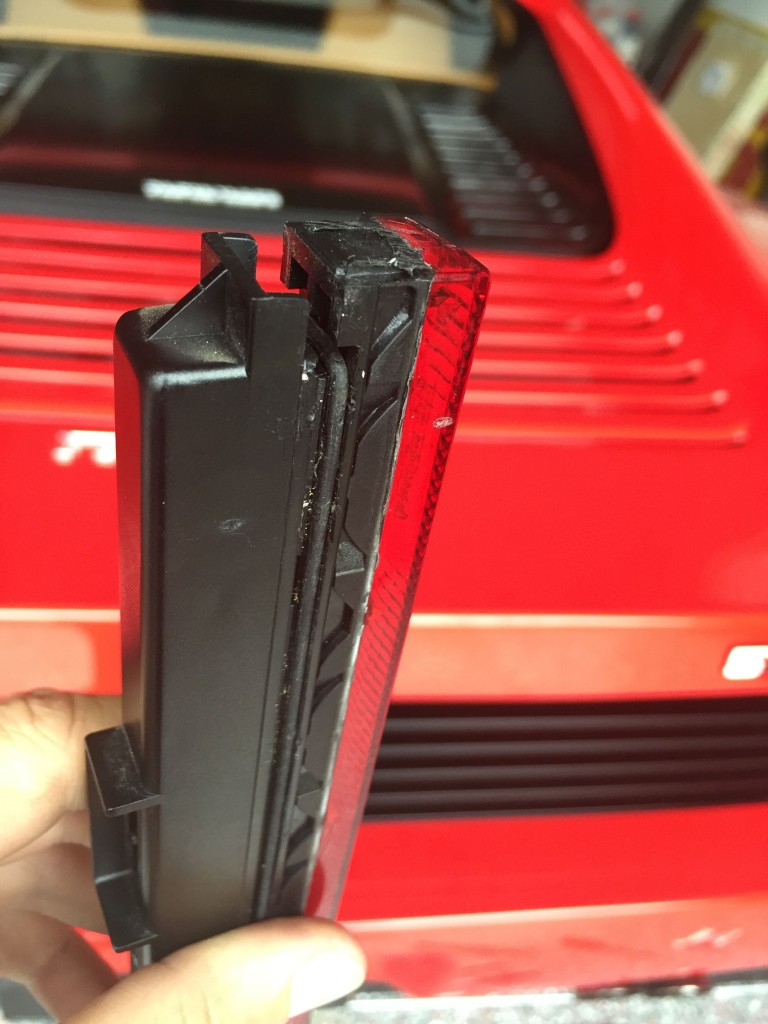

To remove the top reflective lens portion of the housing to access the bulbs, insert a tiny flat-head screwdriver into the “short” side of the lens cover to gently pry it apart as shown in this photo. Do this on both sides before trying to pull it apart, and be VERY careful. The replacement housing is $400 from Ferrari if you break it:

How the lens cover separates from the housing.

How the lens cover separates from the housing.

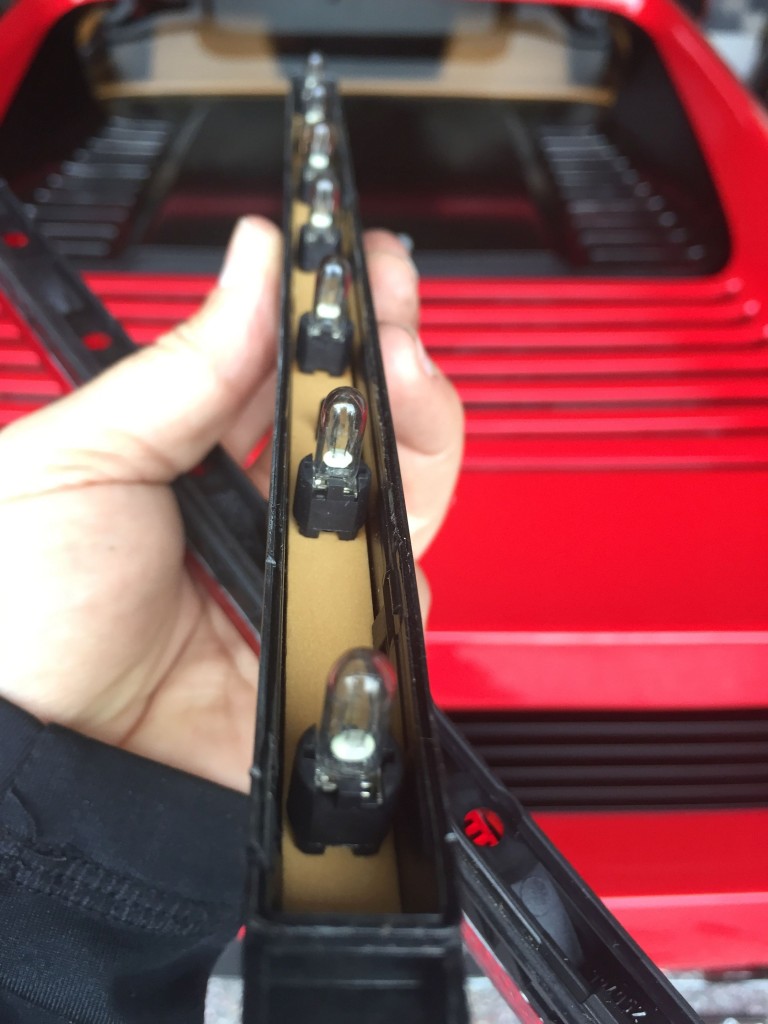

With the cover removed, you can see all seven bulbs inside:

Ferrari 512 TR Auxiliary Brake Light bulbs

Ferrari 512 TR Auxiliary Brake Light bulbs

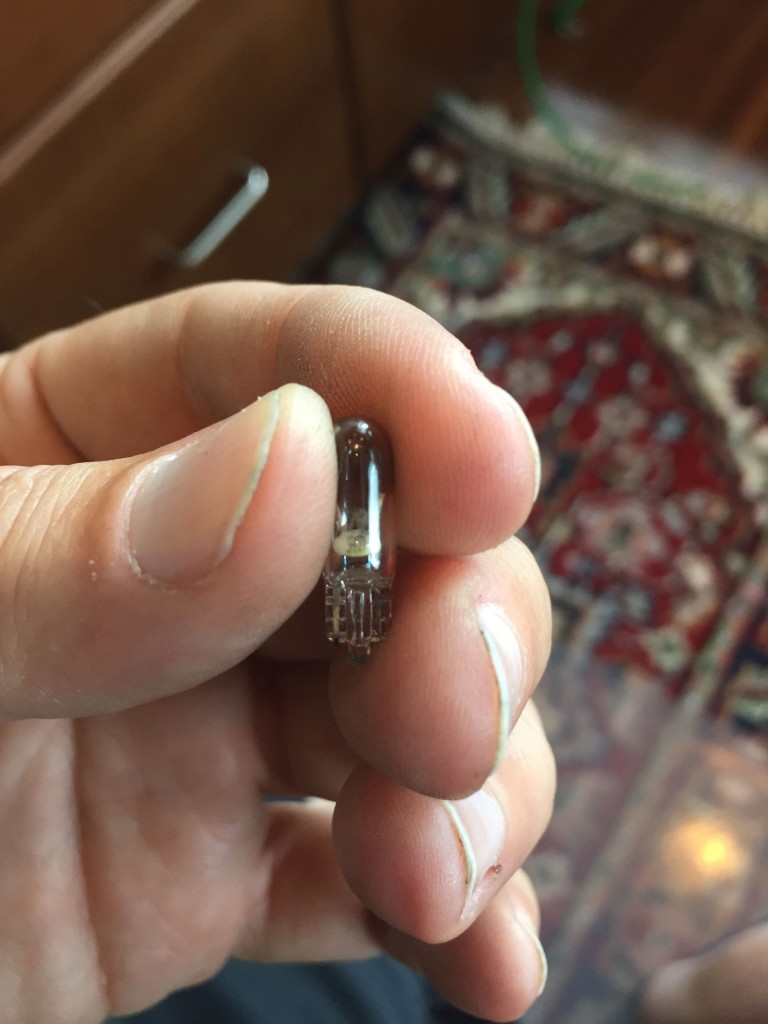

Grab one of the bulbs and pull gently to remove it. Using my calipers to measure its dimensions, I discovered it’s a T5 mini-wedge bulb:

T5 Wedge Bulb

T5 Wedge Base Bulb

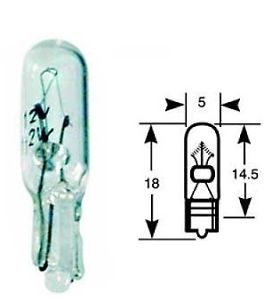

The T5 bulb’s dimensions are 5 mm wide and 18 mm tall from tip to tip:

T5 mini-wedge bulb dimensions

T5 mini-wedge bulb dimensions

The holes in the top portion of the reflector lens into which the bulbs fit are just barely 6 mm wide, so there’s not a lot of wiggle room. There’s a small amount of space in the lense that would allow a replacement bulb to be taller, but not much taller. When picking an LED replacement, I wouldn’t go bigger than 6 mm wide or 20 mm tall.

If you search on Amazon for T5 LED, you’ll find a few different choices. Double-check the bulb dimensions before you buy. Since this fixture has red lens, I would normally prefer to use a red LED. But the only red one I found on Amazon that would fit the application (the Jtech T5 Red LED) had a single emitter facing in a single direction, which wouldn’t fill the lens with light, which is what I’m looking for in an LED brake bulb. Also, with only three emitters, the red light may be too dim. So I ended up going with a white bulb with three emitters. If you try something different and like it, please let me know in the comments.

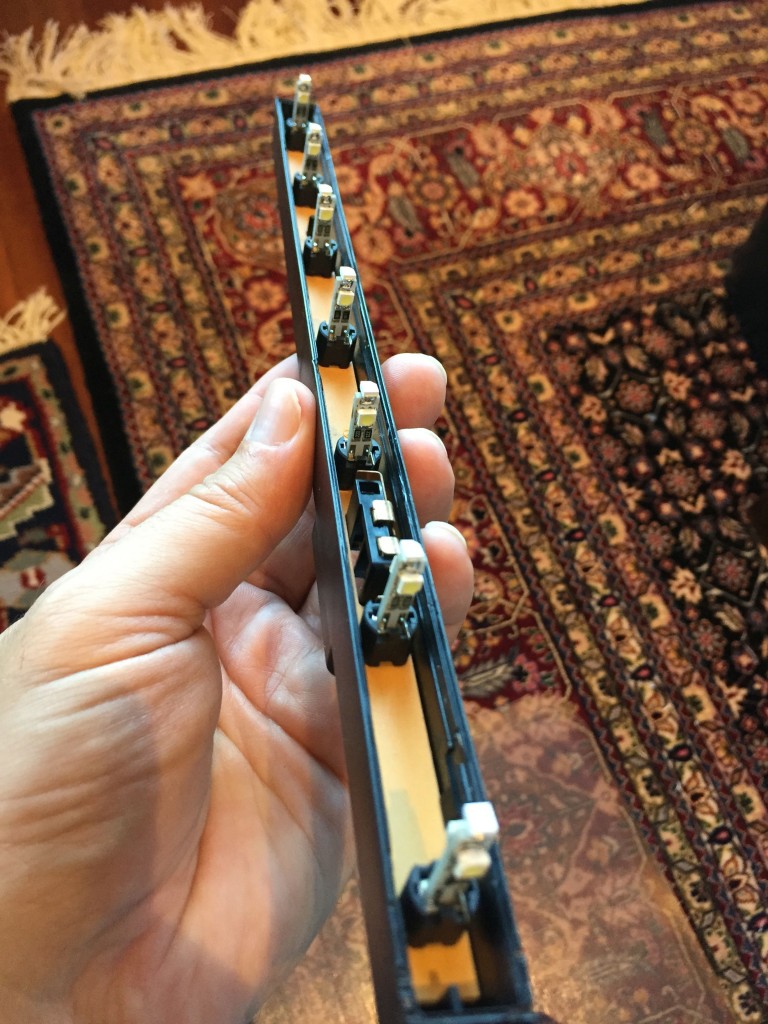

Here are the new mini LED bulbs in the fixture before re-assembly:

Third brake light mini LEDs installed

Third brake light mini LEDs installed

I needed to use a circular file to slightly widen the holes in the plastic lens housing before re-assembly, to make a little more room for the LEDs to fit:

Lining up the holes in the lens assembly

Lining up the holes in the lens assembly

Before final re-assembly, however, I recommend plugging in the base of the third brake light assembly and testing the brake lights, to make sure the polarity isn’t reversed:

Testing the polarity of the third brake light LEDs

Testing the polarity of the third brake light LEDs

Then you can re-install the lens housing and re-test, before re-inserting the assembly into the rear deck lid:

LED-powered third brake light housing re-assembled and working

LED-powered third brake light housing re-assembled and working

OEM Bulb: The original stock bulb for this location is a Type 70 12V 2W, white, mini-wedge base.

LED Replacement: The manual doesn’t mention this bulb specifically, but you can use any LED with a T5 mini-wedge base that’s smaller than 6 mm wide by 20 mm tall. I recommend a 1210 T5 mini-wedge LED bulb. This one (sold in 2 packs) is 20 mm x 5 mm, and you may have to use a screwdriver to squeeze the prongs in the plug together so the bulb fits snugly, and you may need to gently enlarge the holes in the lens housing with a circular file to allow the bulbs to fit.

Total Number of Bulbs: 7

LED License Plate Bulbs

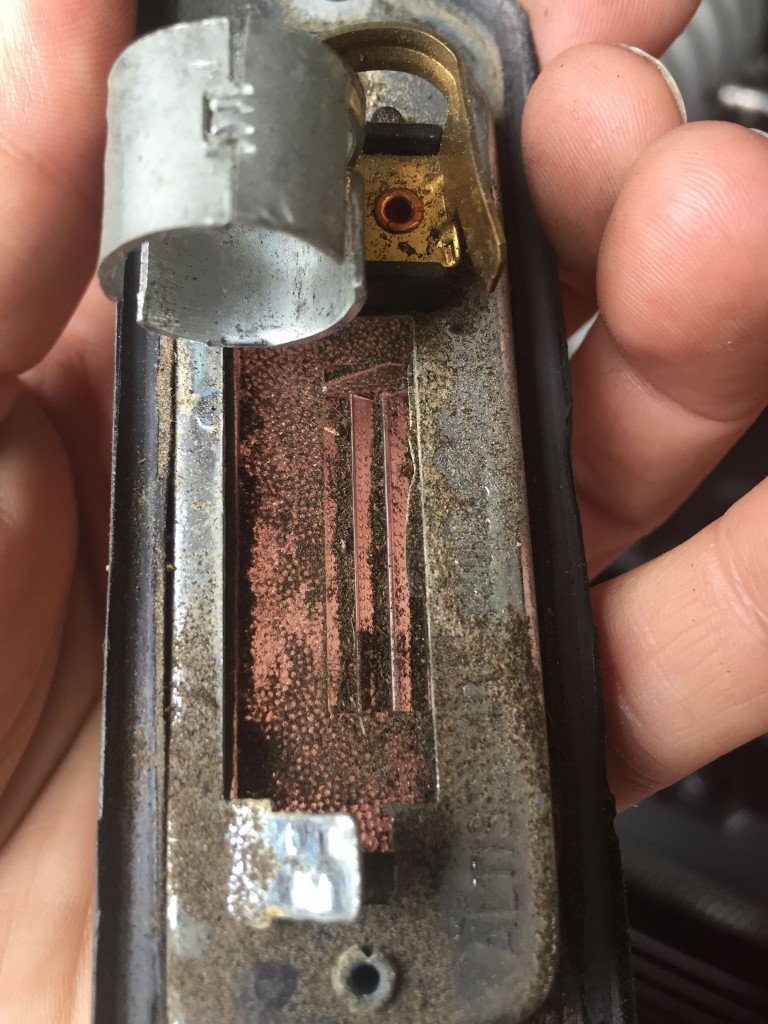

To finish off the rear of your car, you should consider replacing the license plate light bulbs. Replacement LED bulbs here, however, have the same single contact base as the white reverse lights, but the bulb can’t be quite as tall:

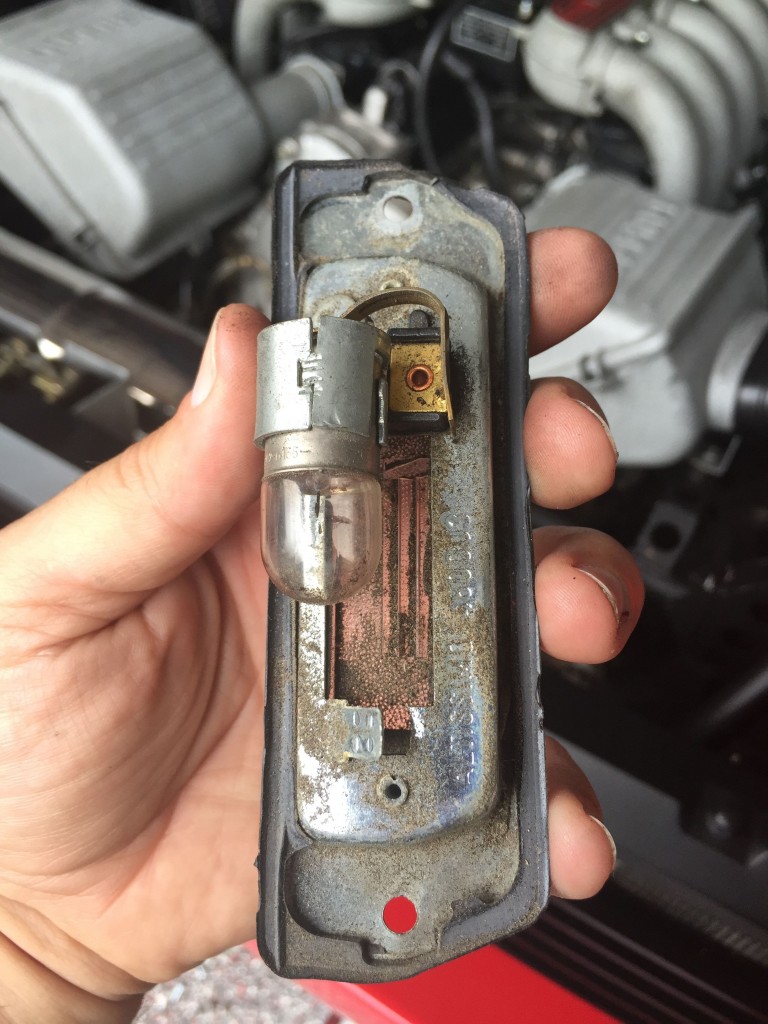

OEM license plate light bulb

OEM license plate light bulb

OEM Bulb: The original stock bulb for this location is a Leuci R5W, white, BA15S base.

LED Replacement: Use a shorter white 1156 BA15S LED (one that’s under 2″ tall). However, make sure that the bulb you buy for this location has a “constant current driver,” because the license plate fixtures only put out 11V on my car. Without a constant current driver, an LED bulb might not receive enough current to light up.

Total Number of Bulbs: 2 (one on each side)

LED Engine Bay Bulbs

If you’d like enough light in your engine bay to actually be able to see and work under there in the dark if you’re pulled over on the side of the road at night, replacing the engine bay lights with LEDs isn’t a bad idea. These fixtures take standard “festoon” type bulbs:

Festoon bulbs in 512 TR engine bay

Festoon bulbs in 512 TR engine bay

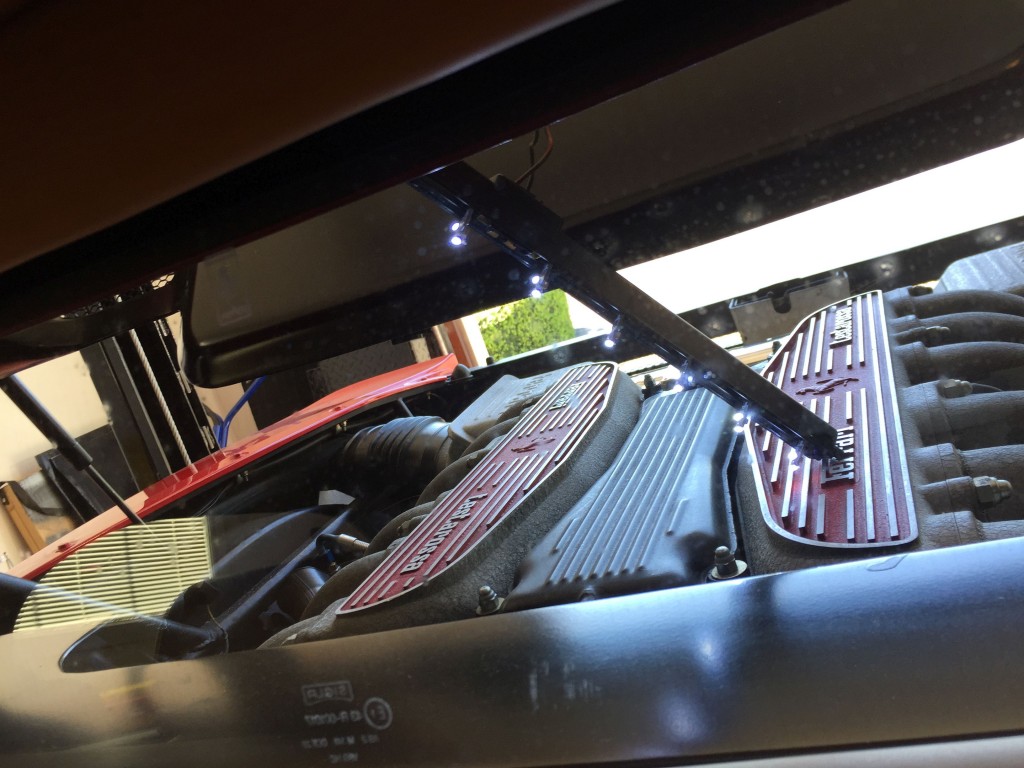

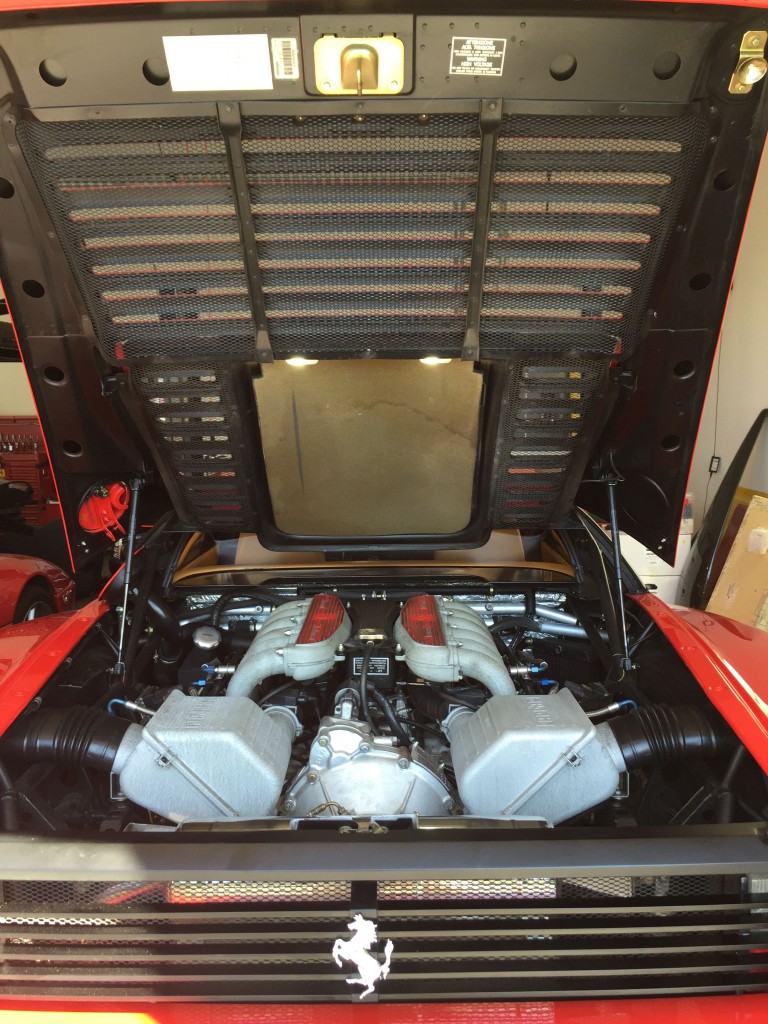

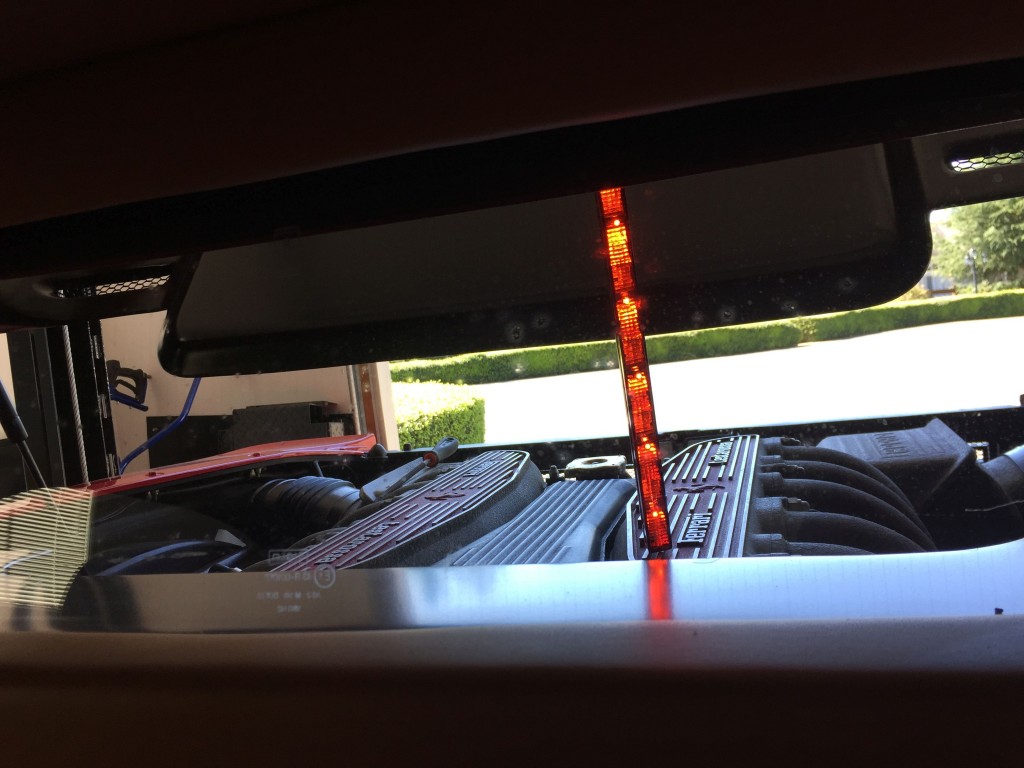

When installed, they light up really bright, even during the middle of the day:

Engine bay with LED lights installed

Engine bay with LED lights installed

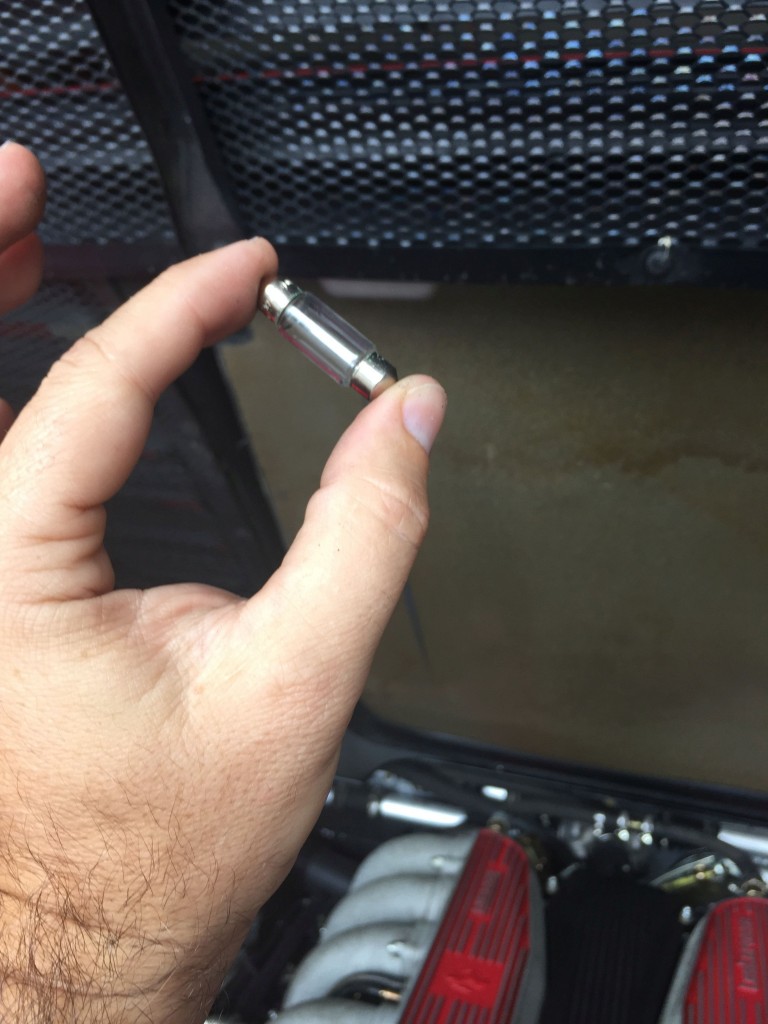

OEM Bulb: The original stock bulb for this location is a Leuci 1E 12V C5W, white, festoon base.

LED Replacement: The housings are ceramic so they can take the heat from the nearby engine, so I knew it would be OK to go with the hotter (and brighter) white 6411 LED.

Total Number of Bulbs: 2 (one on each side)

Clean Lenses Make More Light

As you’re replacing your bulbs, take a moment to carefully clean the lenses. If your lens is clean, more light will get through. My license plate lens housing was due for a good cleaning. Use mild detergent and go slowly. These parts are expensive to replace.

Dirty license plate light lens

Dirty license plate light lens

Ferrari 512 TR LED Bulb Shopping List

To sum up, here’s a summary of everything you’ll need to replace all the old bulbs in a Ferrari 512 TR with LEDs:

As always, I welcome your questions, comments, and feedback below!
